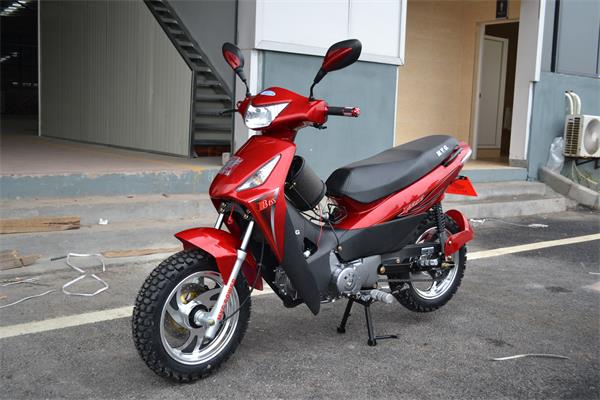

| MYG135 |
 |
|
| MARCA: |
M.Y.G. |
| MODEL NO. |
MYG135 |
| Engine Type |
air cooled. Single cylinder 4-stroke |
| Max Power(kw/r/min) |
4.8kW/8000¡À500r/min |
| Torque(Nm/r/min) |
7.1N.m/6000¡À500 r/min |
| Compression ratio |
9.1:1 |
| idle speed (r/min) |
1500 |
| Displacement(ml) |
135cc |
| Ignition pattern |
CDI |
| Variable speed |
4-Speed |
| Clutch |
auto |
| Start |
Electric/foot |
| Lubrication |
Pressure splash |
| Tires |
115/80-13 |
| Rim |
Alloy wheel |
| shock absorber |
Normal |
| Transmission |
chain |
| Brake |
Disk / drum |
| L¡ÁW¡ÁH(mm) |
1950*700*1250 |
| Seat height(mm) |
810 |
| Ground clearance(mm) |
130 |
| wheel base (mm) |
1300 |
| Top speed(km/h) |
¡Ý50 |
| Net weight(kg) |
90 |
| loadingweight(kg) |
75 |
| Climbing Angle(¡ã) |
¡Ý12 |
| Fuel volume(L) |
3.5L | |
|
|
|
